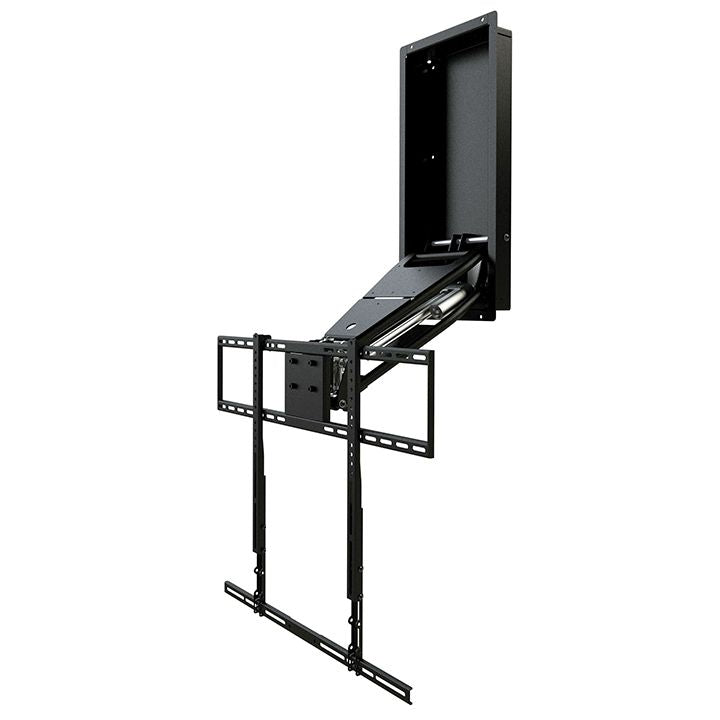

MM860 Motorized Drop Down & Swivel TV Mount


Fully Motorized For Up/Down Travel & Swivel
Auto-Temperature Sensing & Retraction
Integrate With Control Systems Or Control With Included RF Remote
Limited Lifetime Warranty & 100% Guarantee
Find An Authorized Dealer/Installer

Product Description:

The award-winning MantelMount presents a motorized mount for high on the wall installations such as over a fireplace. Offering comfortable eye-level viewing, the fully automated MM860 Pro Series TV Mount is second to none!

Distinguishing Features Include:

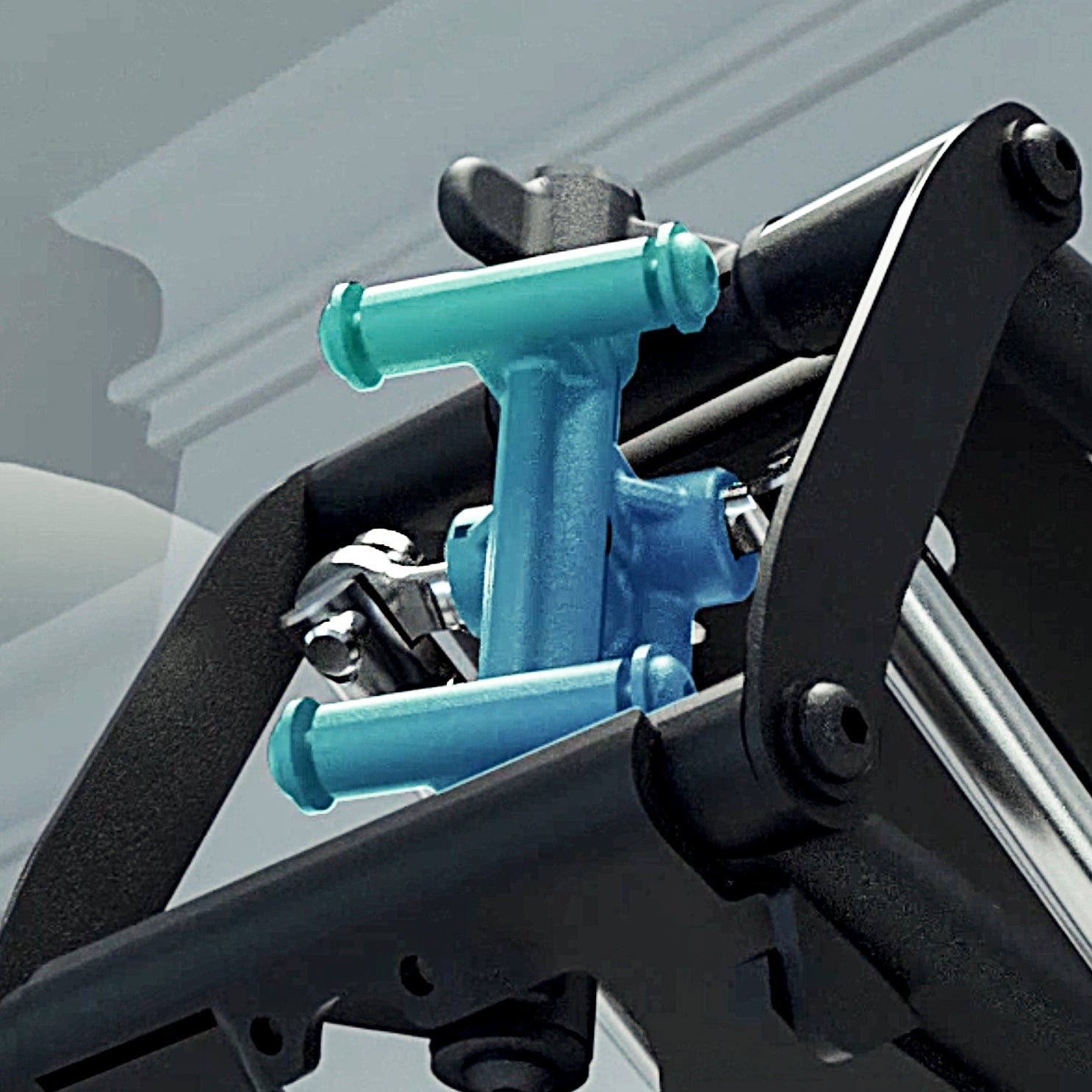

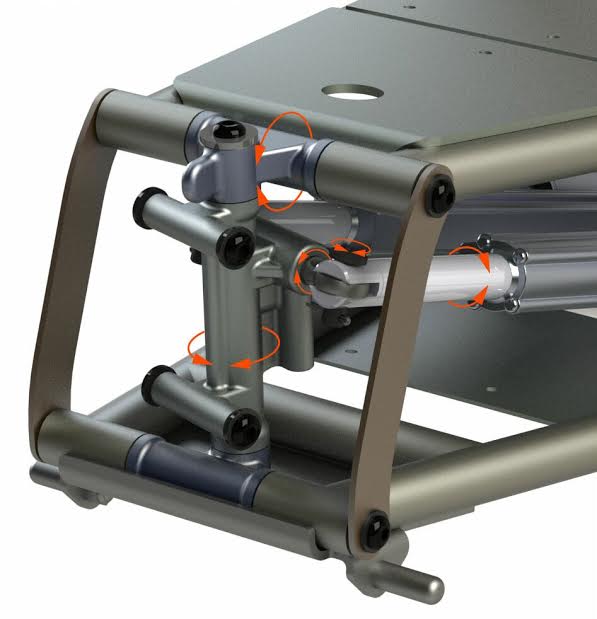

SIMULTANEOUS DROP & SWIVEL: Patented Multi-Axis hub, proprietary software and precision electronic actuators lower and swivel the TV in one quick fluid motion.
REMOTE CONTROL CHOICES: Controlled through the included 433 MHZ RF remote, IR-based Logitech Harmony remotes and popular home automation systems.
HOME AUTOMATION OPTIONS: Works with Control4, URC, RTI, Crestron, Savant, Elan and Logitech, with command sets for hard-coding additional systems.
POWER SENSING TECHNOLOGY: Detects when the TV is turned on and automatically lowers it to a favorite preset. Provides automation even without a control system.
SILENT OPERATION: Two custom electronic actuators allow for smooth, barely audible movement.

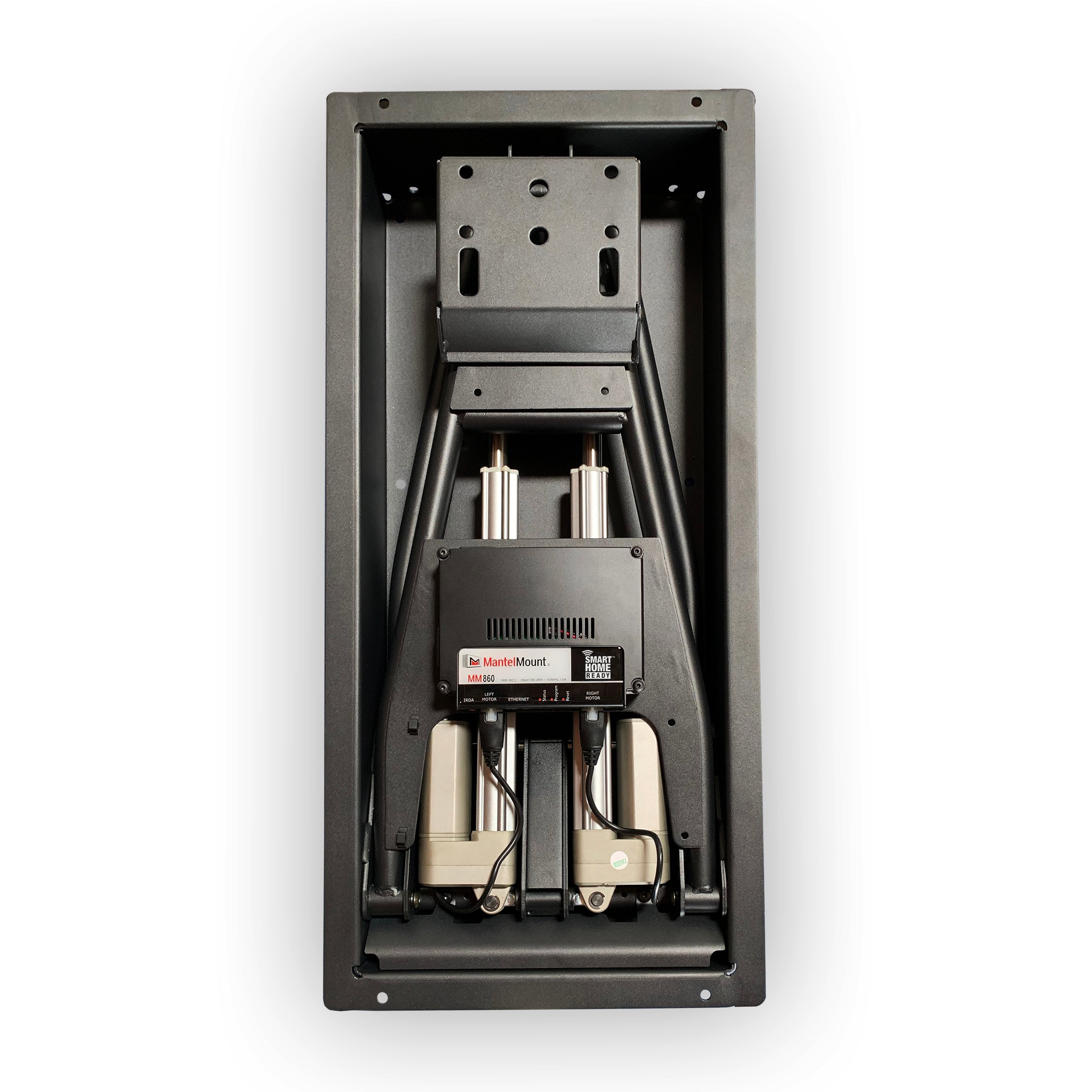

RECESSIBLE HOUSING: Conceals the lifting arm and electronics in the raised position. Can be recessed for flush-to-wall installations.
TEMPERATURE-SENSING MONITOR: TV automatically retracts to its home position when an unsafe temperature is detected.
SOFT & HARD TRAVEL STOPS: Vertical and horizontal travel limits configured through both software and hardware, provide a virtual safety shield that prevents the TV from touching the wall or mantel.
PLUG & PLAY NETWORKING: DHCP enabled right out of the box. Easily identifiable on the network.

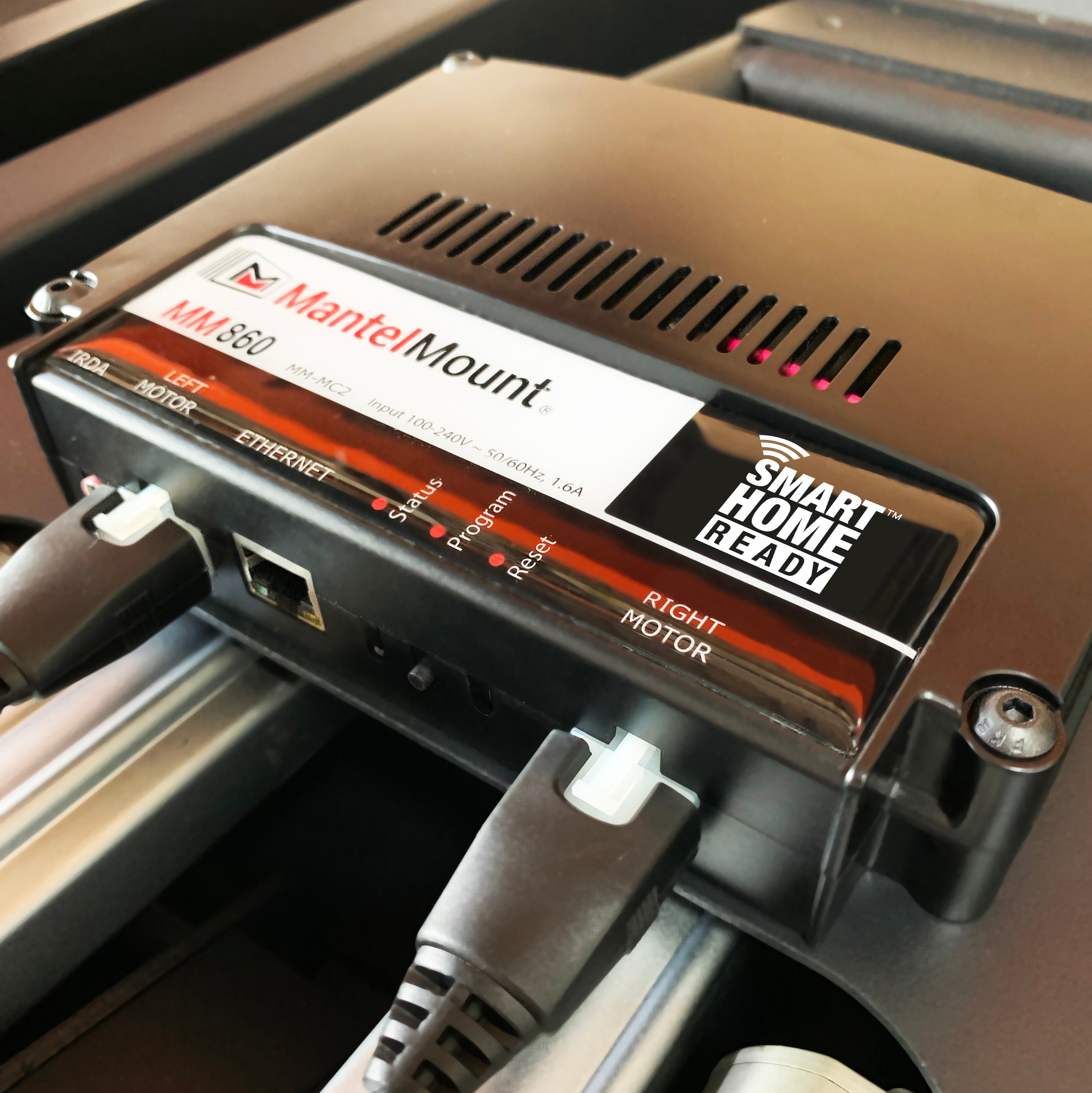

ON-BOARD WEB SERVER: For simple browser based configuration
ONLINE SOFTWARE UPDATES: Download the latest software and firmware updates from the internet directly to the control module.
POST-INSTALLATION LEVELING: Allows for screen position refinement after the mount is installed.

Please review our Sales Sheet for the complete list of features and specifications. NOTE: The MM860 is only available through authorized MantelMount dealers and not available for purchase on this site.


  • TV Size: 55"– 100"
  • Weight Capacity: 125 lbs
  • Mounting Pattern: Up to 600 x 600
  • Heavy Duty Steel: 3-5.5 mm
  • Swivel: 25 degrees left/right
  • Vertical Drop: Up to 30 inches
  • Off-The-Wall-Distance: 20.5"-24"
  • MM860 Install Manual
  • Dimensions Diagram
